Huawin WG2000: The Smart Precision Worm Grinding Solution

Redefining High-Margin Production with "Algorithmic Accuracy" & "Cost-Efficiency"

【Executive Summary】

In an era where precision often comes with a premium price tag, Huawin WG2000 breaks the mold. Designed for manufacturers balancing DIN-class precision with operational costs, the WG2000 offers the smartest ROI in the industry—delivering high-end results without the high-end burden of CBN consumables.

【3 Core Competitive Advantages】

1. The "Black Tech": Smart Closed-Loop Deviation Compensation

— Surpassing Mechanical Limits with Software-Defined Accuracy

Traditional machines rely solely on expensive, heavy-duty mechanical structures for accuracy. The WG2000 goes further by overcoming physical assembly tolerances through advanced algorithms.

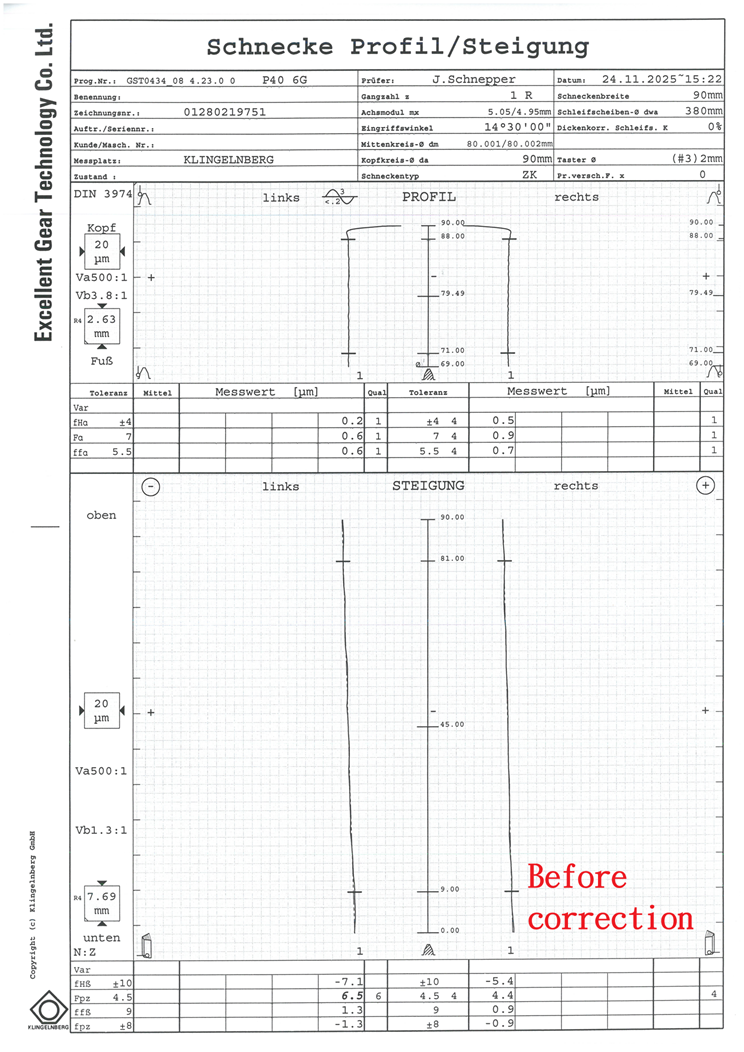

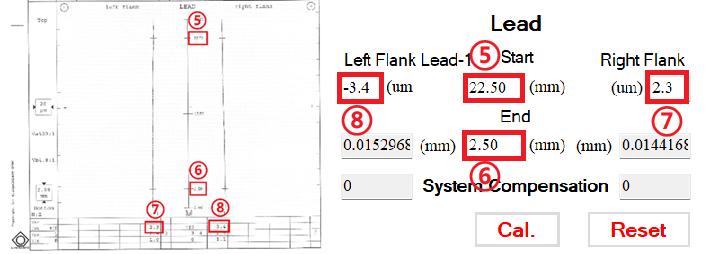

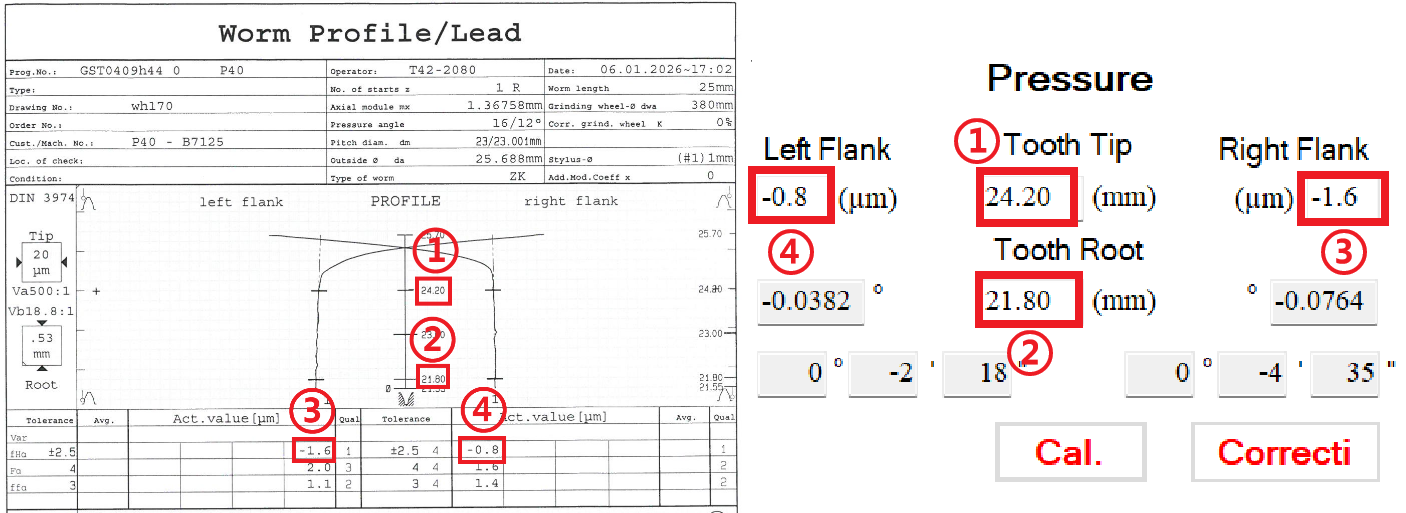

• Trial & Calibrate: The operator performs a single trial grind, measures the lead or pitch deviation, and inputs the data into the CNC system.
• Dynamic Reverse Compensation: The controller calculates a precise reverse compensation profile. During the next cycle, it dynamically adjusts the axis motion to actively cancel out the machine’s inherent micron-level mechanical variances.

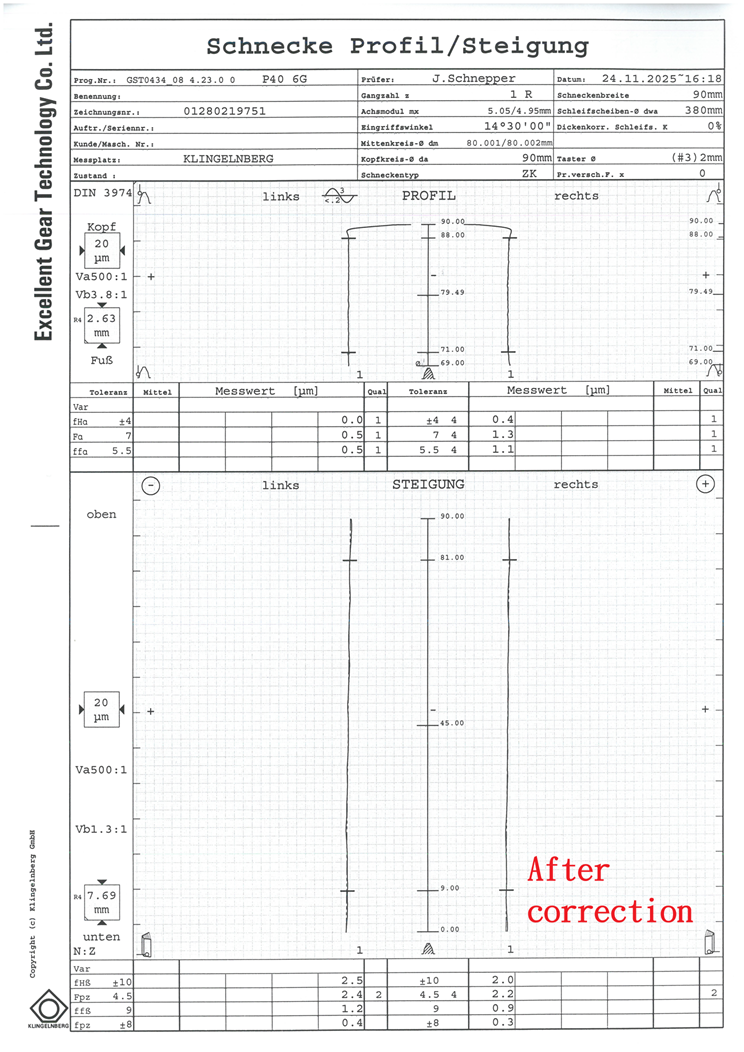

• The Result: The WG2000 can produce parts with higher accuracy than the machine’s own mechanical assembly rating.
• Prototype/Lab Accuracy: DIN 1 ~ DIN 2
• Mass Production Guarantee: DIN 4

2. Freedom from Consumable Lock-in: Optimized for Standard Wheels

We don’t force you into expensive proprietary ecosystems. The WG2000 is engineered to extract maximum performance from Standard Alumina/Ceramic Wheels.

• Drastic Cost Reduction: Slash your cost-per-part (CPP) by 60%~80% compared to CBN processes.
• Ultimate Flexibility: With our high-precision dressing unit, you can modify tooth profiles on the fly. This is ideal for High-Mix, Low-Volume production, eliminating the long lead times and high costs associated with custom Diamond Rollers.

3. The "Golden Speed Zone": 30~40 m/s

Instead of chasing risky extreme speeds, we optimize for the "Sweet Spot" of standard abrasives to ensure process stability and part integrity.

• Super-Finishing Mode (30~35 m/s): Optimized for Low NVH (Noise, Vibration, Harshness). This speed minimizes grinding heat, delivering a mirror-like surface finish essential for elevator traction machines and medical drivetrains.
• Production Mode (40 m/s): The efficiency limit of standard wheels. Backed by a reinforced bed and advanced coolant system, the WG2000 maintains thermal and dimensional stability even under continuous industrial loads.

【Technical Summary】

【Conclusion for Decision Makers】

The WG2000 is a machine that "calculates."

It calculates how to compensate for mechanical errors; it calculates the optimal speed to protect your workpieces; and most importantly, it calculates how to save you money on every single part produced.

If your strategy focuses on Reliable Precision and Real Profitability, the Huawin WG2000 is your most rational choice.
